Дом > продукты > Турникет барьера качания > Stainless Steel Swing Barrier Turnstile with RS485/TCP/IP

Stainless Steel Swing Barrier Turnstile with RS485/TCP/IP

Детали продукта

Место происхождения: Шэньчжэнь

Фирменное наименование: Zento

Сертификация: CE, ISO9001, ROHS

Номер модели: ZT-923C

Условия оплаты & доставки

Количество мин заказа: 1

Цена: $245/pcs (Contact us to get more information)

Упаковывая детали: деревянный корпус

Время доставки: 10 рабочих дней

Условия оплаты: T/T, Western Union

Поставка способности: 100 комплектов в неделю

Получите самую лучшую цену
Выделить:

stainless steel swing barrier turnstile

Читатель карт:
Необязательно
Интерфейс связи:
RS485/TCP/IP
Влажность:
≤95%
Дисплей с светодиодным освещением:
Необязательный
Материал:
Нержавеющая сталь
Время открытия:
0.2S
Читатель карт:
Необязательно
Интерфейс связи:
RS485/TCP/IP
Влажность:
≤95%
Дисплей с светодиодным освещением:
Необязательный
Материал:
Нержавеющая сталь
Время открытия:
0.2S

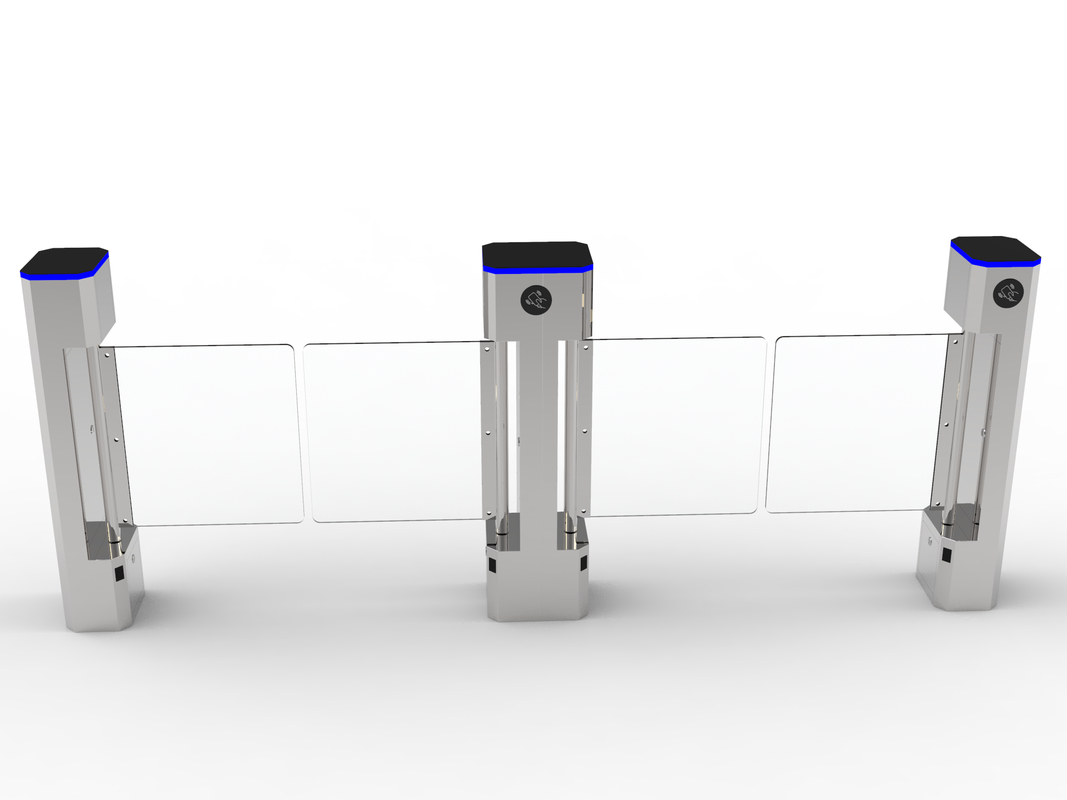

Stainless Steel Swing Barrier Turnstile with RS485/TCP/IP
ZT-923C Supermarket Swing Barrier Turnstile
Product Specifications
Card Reader Optional
Communication Interface RS485/TCP/IP
Humidity ≤95%
LED Display Optional
Material Stainless Steel
Opening Time 0.2s
Product Overview

Factory Price Access Control Full Automatic Bi-Directional Barrier Swing Turnstile For Supermarket

A supermarket swing turnstile is a type of access control turnstile gate used to manage customer flow at store entrances and exits. Designed for durability and efficiency, it provides an optimal solution for retail security and crowd management.

Technical Parameters
  • Overall dimensions: 260*180*980mm
  • Material: SU304/316 stainless steel
  • Process: bright brushed type
  • Material thickness: 1.2mm/1.5mm/2.0mm optional
  • Transmission mode: standard transmission (passenger)/anti-collision transmission
  • Channel width: single unit 600mm-900mm
  • Traffic mode: one-way/two-way
  • Control software: access control and attendance system/electronic ticketing system/consumption system
  • Reading methods: ID card/IC card/fingerprint face recognition/barcode platform/static tester
  • Working environment: indoor/outdoor (shade recommended)
  • Power supply: AC200V/AV110V (optional) 50HZ
  • Operating temperature: -15℃ to 65℃
  • Relative humidity: less than 95%, no condensation
  • Traffic speed: 40/minute
  • Input interface: relay signal
  • Service life: 3 million operations without failure
  • Expandable features: people counting, voice alarm, camera capture
Stainless Steel Swing Barrier Turnstile with RS485/TCP/IP 0
Key Features and Functionality
Operation Modes
  • Automatic Turnstile Gates: Use infrared sensors to detect and open automatically
  • Self-Checkout Turnstile Gates: Integrated with POS systems, opens when receipt barcode is scanned
  • Mechanical Turnstile Gates: Manual push operation with automatic spring-controlled closing
Design Features
  • Materials: Polished stainless steel (SUS304 standard) for durability
  • Barrier Options: Stainless steel, plexiglass, or acrylic with optional signage panels
  • Passage Width: 600mm to 1200mm to accommodate shopping carts and strollers
Security and Integration
  • Directional Control: Configurable for one-way or two-way access
  • Anti-tailgating: Advanced sensors prevent unauthorized multiple entries
  • System Integration: Compatible with QR code readers, RFID, biometric scanners, and facial recognition
  • Emergency Functionality: Automatic opening during power failures for safe evacuation
Stainless Steel Swing Barrier Turnstile with RS485/TCP/IP 1
